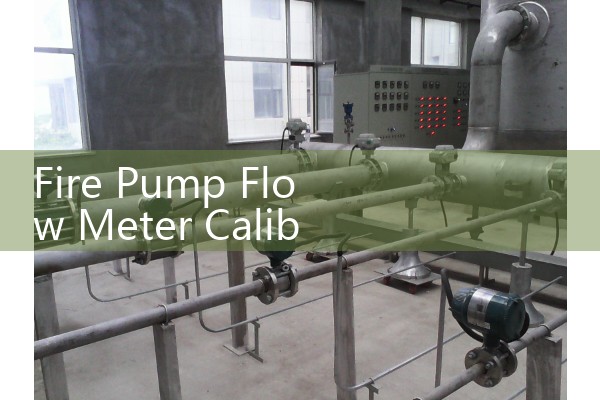

Fire Pump Flow Meter Calibration Requirements Under NFPA 20
Quick Answer: Fire pump flow meters need annual calibration for NFPA 20 compliance. A meter with an accuracy of plus or minus 1 percent or better is accepted. Test points usually cover zero, rated flow, and 150 percent of rated flow.
Why Annual Calibration Matters for Fire Pump Flow Meters
NFPA 20 is not just a design standard. It connects fire pump performance to life safety. A fire pump that passes a visual inspection may still deliver low flow because a flow meter drifts. Calibration confirms the meter reads within tolerance. We have seen a pump house in Vietnam with a meter error of 4.6 percent. The pump itself was fine. The test result failed because the meter was out of calibration.
NFPA 20 Flow Meter Accuracy Requirements
NFPA 20 does not list one universal accuracy value in a single table. The standard points to test procedures that require a flow measuring device with an uncertainty no greater than plus or minus 2 percent. Many fire protection engineers tighten that to plus or minus 1 percent. For flow totalizers and analog outputs, use calibration certificates traceable to a national standard. You should keep the certificate on site for the fire marshal.
For a fire pump rated at 2,500 GPM, a 2 percent error equals 50 GPM. That is enough to change the test curve. Use a meter with direct 4-20 mA HART output so the data logger records flow without manual transcription.
Which Flow Meter Types Work for Fire Pump Annual Tests
Electromagnetic flow meters and clamp on ultrasonic flow meters are the most practical. In many fire pump rooms, the pipe is DN80 to DN300. You need a meter that does not add pressure loss. An electromagnetic flow meter with DN100 size and a PTFE liner is common. A clamp on ultrasonic flow meter can be installed quickly for a temporary test loop. Do not use an orifice plate for a temporary fire pump test. The pressure loss and installation time are not worth it.
Calibration Steps Fire Pump Technicians Should Follow
Here is the thing. Annual calibration is not the same as field verification. Calibration means comparing the flow meter against a reference standard and documenting the error. Start by checking the zero point with the pipe full and no flow. Then compare readings at three flow points, for example 25 percent, 75 percent, and 100 percent of the test flow. The maximum error must stay within the tolerance written in your site test procedure.
For a pump test under NFPA 20, you also need simultaneous pressure readings. The flow meter calibration must be stable across the full range. Some meters have a low flow cut off. If the cut off is too high, the meter reads zero when the pump is at churn. That will fail an annual test because zero flow is one of the required test points.
Common Errors in Fire Pump Flow Meter Calibration
We often see three mistakes. First, the meter is sent to a lab, but the field wiring is not checked. A loose signal cable will ruin a good calibration. Second, the calibration range does not match the actual flow test range. A
Silver Instruments Fire Pump Flow Meter Options
Silver Instruments supplies electromagnetic flow meters, clamp on ultrasonic flow meters, and vortex flow meters for fire pump test loops. We provide calibration reports that mention traceability to ISO 17025. Our electromagnetic flow meters cover DN15 to DN600. Accuracy can reach 0.5 percent of reading for many models. The output can be 4-20 mA HART, RS485 Modbus, or pulse. For hazardous pump rooms, we can supply ATEX Zone 1 versions.
A contractor in Saudi Arabia used our clamp on ultrasonic meter for a fire pump test in a high rise building. The pipe was DN200 carbon steel, 8 inch. They measured flow at three test points and matched the pump curve within 1 percent. The whole flow meter setup took 25 minutes. The calibration certificate was accepted by the local civil defense inspector.
Send us your pipe size in DN, pressure in bar, temperature in °C, and flow range. Our engineers will recommend a flow meter that meets NFPA 20 annual test needs. Tel +86 25 6865 0347. WhatsApp +86 25 5215 5837. WeChat +86 153 6508 2610.
FAQ
Does NFPA 20 require a flow meter calibration every year?
Yes. NFPA 20 acceptance tests and NFPA 25 annual tests require flow measurement. The flow meter used for testing must be accurate and calibrated. Annual calibration is the minimum for many fire protection authorities. Some sites in the Middle East require six month calibration for critical pumps.
What is the maximum flow meter error allowed?
A flow meter for fire pump tests should have an accuracy of plus or minus 1 percent of reading. NFPA 20 test procedures often cite an acceptable uncertainty of plus or minus 2 percent. We recommend the tighter value because pump curves may have small margins.
Can I use a clamp on ultrasonic flow meter for NFPA 20 annual test?
Yes. Clamp on ultrasonic flow meters work well for temporary tests. The pipe surface must be clean. The transducers must be mounted away from elbows and valves. Straight run of ten times pipe diameter upstream is a safe starting point.
Do electromagnetic flow meters need a special liner for fire pump water?
Fire pump water may be raw water, brackish water, or foam concentrate. For raw water, a PTFE or hard rubber liner is fine. For seawater or brackish water, use a meter with titanium electrodes and a PTFE liner. We have supplied electromagnetic flow meters for fire pumps in a desalination plant in Oman.
How do I buy a flow meter for fire pump testing from Silver Instruments?
Send your pipe size in DN, flow range, pressure in bar, and preferred output to our sales team. Include the test points you must record. We will send a quote with calibration certificate options. Tel +86 25 6865 0347. WhatsApp +86 25 5215 5837. WeChat +86 153 6508 2610.
