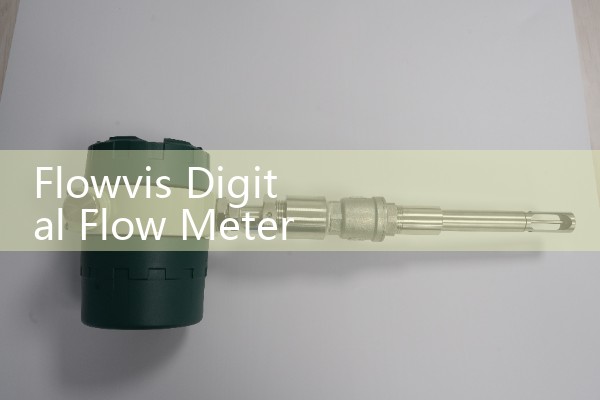

Flowvis Digital Flow Meter Sizing: Precision Volumetric Readouts for Modern Commercial Pool Systems
Quick Answer: For commercial pool recirculation lines from DN25 to DN150, the Flowvis digital flow meter gives a direct volumetric readout in liters per minute or cubic meters per hour. Size the meter from actual pipe ID and backwash flow, not from the pump nameplate. Send your pipe size, flow range, and working pressure to Silver Instruments for a fixed quote.
Why a Digital Volumetric Readout Matters for Commercial Pools
Most commercial pool systems run on a simple principle. The full water volume must pass through the filters several times each day. In Australia, many public pool codes require a turnover period of six hours or less. A 100 cubic meter pool therefore needs a minimum recirculation flow of about 17 cubic meters per hour. If the actual flow drops to 12 cubic meters per hour, the turnover period stretches to more than eight hours. Water quality falls before the operator sees a problem.
A Flowvis digital flow meter shows the real volumetric flow at the moment. It also accumulates total volume. This helps the operator prove that the pool met its turnover requirement. In practice, mechanical variable area meters often struggle at low night flow. The float sticks, the scale is hard to read, and chlorine attack fogs the plastic. A digital readout removes that guesswork.
We have seen this on customer sites many times. A hotel in Bali had a DN65 return line with a mechanical meter that read 20 percent low. The chief engineer changed the filter schedule based on the meter. The actual flow was higher than indicated. The filters were backwashed too late and the pool turned cloudy within three weeks. A Flowvis digital meter with pulse output solved the measurement error.
Flowvis Sizing Logic: Pipe Size, Flow Range, and Backwash
Start with the pipe ID. Do not use the pump flange size alone. A DN80 pipe can carry different flow depending on velocity. Commercial pools usually run between 1.5 and 2.5 meters per second in PVC pipe. At 2 meters per second, a DN50 line carries about 14 cubic meters per hour. A DN80 line carries about 36 cubic meters per hour. A DN100 line carries about 57 cubic meters per hour. A DN150 line carries about 127 cubic meters per hour.
Backwash flow changes the sizing picture. A sand filter normally backwashes at a higher flow than filtration. If the main circulation is 40 cubic meters per hour, the backwash flow may reach 60 or even 80 cubic meters per hour. Size the Flowvis meter so the backwash peak stays inside 100 percent of full scale. This avoids saturation and inaccurate total volume during cleaning cycles.
The Flowvis digital flow meter has a rated accuracy of ±1.5 percent of reading from 10 percent to 100 percent of full scale. Repeatability is ±0.5 percent. That means a DN80 meter with a full scale of 60 cubic meters per hour gives useful data from about 6 cubic meters per hour upward. Do not install a DN80 meter on a line that runs at 3 cubic meters per hour. The reading will be unstable.
Typical Flowvis Selections for Commercial Pool Lines
Here is a practical selection table for standard PVC pool piping. For DN25 and DN40 lines, the Flowvis meter covers 1 to 10 cubic meters per hour. These sizes suit spa return lines, ozone injection loops, and small feature pumps. For DN50, the normal full scale is 20 cubic meters per hour. For DN65, choose 30 cubic meters per hour. For DN80, choose 60 cubic meters per hour. For DN100, choose 90 cubic meters per hour. For DN150, choose 180 cubic meters per hour. These values cover typical filtration and backwash peaks in Southeast Asia and Australia.
In practice, most engineers skip this part and order the same size as the pipe. That works for new installations with clean design data. But if the pool has old piping with scale, the actual flow may be lower. Confirm the flow range with a clamp on flow check or a pump curve review before ordering.
Installation and Output Options
The Flowvis meter body is available in PVC or PP. For commercial pools, PVC is the standard choice. It handles continuous chlorine levels up to 3 parts per million and salt chlorinated water with conductivity up to 5,000 µS/cm.
Install the meter with straight pipe runs. A good rule is 10 times the pipe diameter upstream and 5 times downstream. For a DN80 line, that means 800 mm of straight pipe before the meter and 400 mm after. Do not install the Flowvis meter right after a pump elbow or a butterfly valve. The swirl in the flow causes unstable readings.
Output options include pulse, 4-20 mA, and RS485 Modbus RTU. For a basic commercial pool control panel, the 4-20 mA signal is the most common. The current loop sends instantaneous flow to the chemical controller. The pulse output tracks total volume for backwash scheduling. If the pool uses a building management system, order the Modbus RTU output. It allows remote reading and data logging.
The digital display shows both flow rate and total volume. The unit has no moving float. That is a real advantage in pool plant rooms where vibration and humidity are high. The display is IP65 rated. The process connection can be threaded or flanged. For DN50 and smaller, threaded BSP or NPT is typical. For DN65 and larger, flanged connections in PNG or JIS patterns are common.
Common Sizing Mistakes We See on Pool Projects
One mistake is using the pump nameplate. The pump curve may say 50 cubic meters per hour at 15 meters of head. The actual system curve with dirty filters often reduces that to 38 cubic meters per hour. The Flowvis meter should be matched to the real operating point.
Another mistake is ignoring the backwash cycle. A meter sized exactly at normal flow saturates during backwash. You lose the total volume reading during the cleaning cycle. For a 25 meter public pool in Singapore, that means the operator cannot prove the filter was backwashed at the correct flow.
A third mistake is selecting an oversized meter. A DN100 Flowvis on a DN50 line gives poor low flow resolution. The digital reading may jump from 1 to 8 cubic meters per hour without a stable trend. This leads to false alarms or missed low flow conditions.
How to Request a Quote from Silver Instruments
Silver Automation Instruments supplies Flowvis digital flow meters for commercial pool contractors, mechanical consultants, and water treatment companies. Send us your pipe size in DN, normal flow rate in cubic meters per hour, backwash flow rate in cubic meters per hour, working pressure in bar, and water temperature in degrees Celsius. Also mention if the pool uses salt chlorination or liquid chlorine.
We respond with a selection table and a fixed price. You can reach Silver Instruments by Tel at +86-135-1213-1526. You can also use Whatsapp at 86-135-12131526 or WeChat at +86 13512131526. For urgent pool project bids, send the flow data by Whatsapp and we will reply within 12 hours.
FAQ: Flowvis Digital Flow Meter Sizing for Commercial Pools
What Flowvis size fits a DN80 commercial pool recirculation line?
A DN80 Flowvis meter with a full scale of 60 cubic meters per hour covers most DN80 pool lines. Check the backwash flow first. If backwash exceeds 60 cubic meters per hour, move to a larger meter or lower the backwash rate.
Can the Flowvis meter handle salt chlorinated pool water?
Yes. Select the PVC body version. It handles salinity up to 35,000 parts per million and conductivity up to 5,000 µS/cm. Do not use metal wetted parts in salt pools.
Does the Flowvis digital flow meter require straight pipe runs?
Yes. Use 10 times the pipe diameter upstream and 5 times downstream from elbows, valves, or pumps. This keeps the velocity profile stable and the reading accurate.
What outputs are available for a pool control panel?
Standard outputs are pulse, 4-20 mA, and RS485 Modbus RTU. Most chemical controllers accept the 4-20 mA signal. The pulse output is useful for total volume and backwash timing.
How do we get a price for a specific pool project?
Send pipe size, normal flow rate, backwash flow rate, pressure, and water chemistry to Silver Instruments. Use Tel, WhatsApp, or WeChat. We will return a fixed quote and delivery lead time.
